Lattice products guide

Lattice products are built to help you keep innovating. Whether you’re designing high-volume mobile handsets or leading-edge telecom infrastructure, our market leading Programmable Logic Devices, Video Connectivity ASSPs, and mmWave products will help you bring your ideas to market faster – ahead of your competition.


Programmable Logic (FPGA, CPLD, and power / thermal management devices)


ECP Family

  • ECP5 Chip Shot

    ECP5 / ECP5-5G

    With a focus on compact, high volume applications, Lattice optimized ECP5 for low cost, small form factor and low power consumption. These characteristics make ECP5 ideal for delivering programmable connectivity to complement ASICs and ASSPs.

  • LatticeECP3_Chip_Shot


    LatticeECP3 was designed to offer an efficient FPGA with the benefits of SERDES. Need PCIe, HDMI, CPRI, JESD204, GbE or XAUI? No problem. When performance requirements are high, and size, weight or power is constrained, LatticeECP3 is perfect.

  • LatticeECP2/M Chipshot


    With up to 95K LUTS, up to 5.3 Mbit block and distributed RAM, the LatticeECP2/M families integrate capabilities previously only found on higher cost FPGAs.

  • LatticeSC/M


    Offering best-in-class solutions for standards like Ethernet, PCI Express, SPI4.2 and high speed memory controllers, LatticeSC/M is equipped with embedded memory, hierarchical clocking and clock management resources for high-end system designs.

iCE Family

  • iCE40 Ultra / UltraLite Chipshot

    iCE40 Ultra / UltraLite / UltraPlus

    The iCE40 Ultra / UltraLite / UltraPlus, the world’s most integrated mobility focused FPGA, brings you unsurpassed integration at breakneck development speed. It allows customers to upgrade current products or create completely new capabilities, while reducing power, cost, BOM, and size.

  • iCE40 Black Chip

    iCE40 LP/HX/LM

    With iCE40 LP/HX/LM FPGAs you can create ingenious mobile products while staying within your cost, power, size and schedule targets. These devices allow you to rapidly customize solutions with off-the-shelf chips. This means maximum product differentiation with minimum cost and effort.

CrossLink Family

  • CrossLink

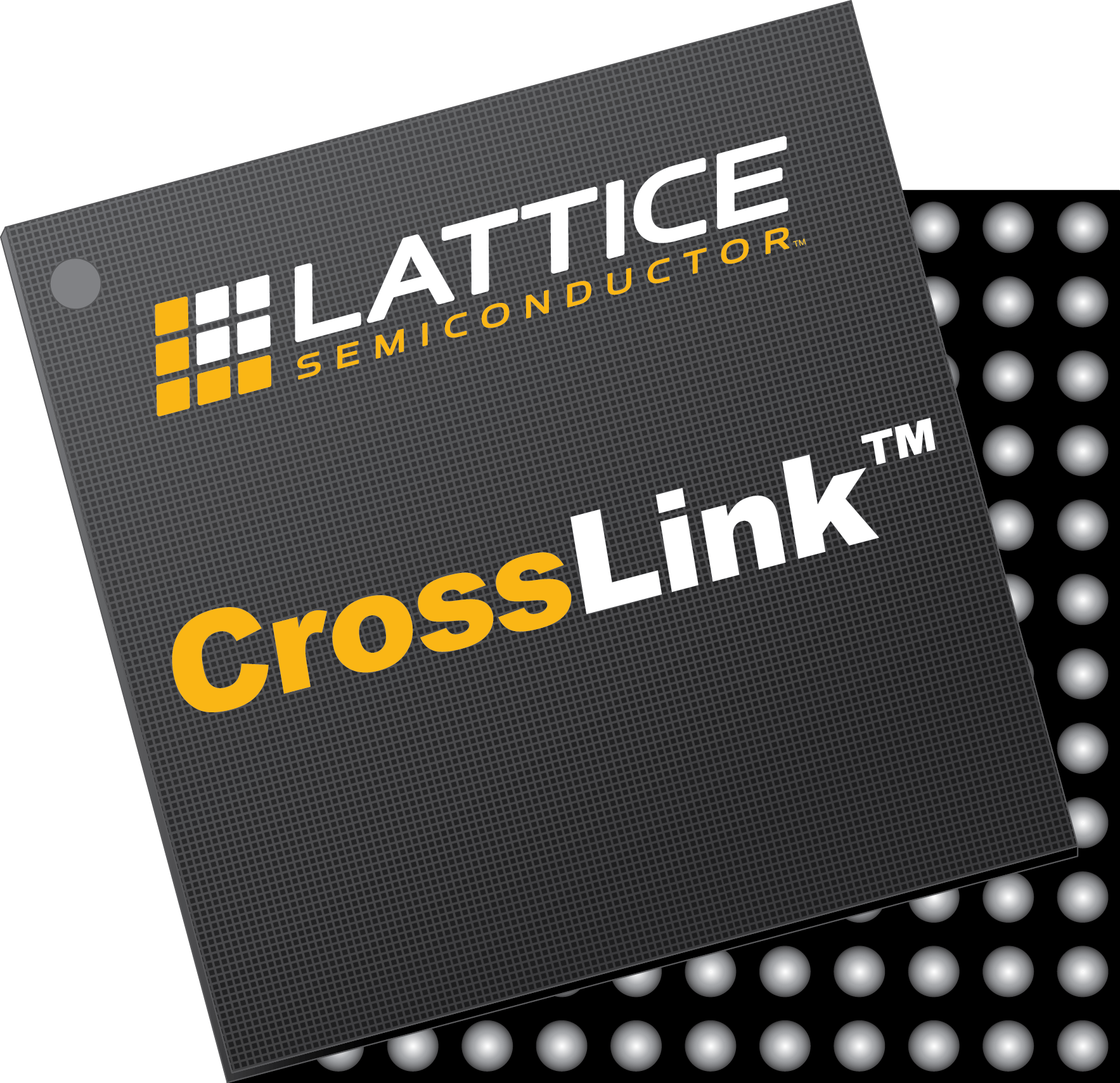

    First programmable bridging solution for cameras and displays with a built-in sleep mode, footprint as small as 6 mm2and up to 50% lower power than the competition. It’s the industry’s fastest MIPI D-PHY bridging solution supporting 4K UHD at speeds up to 12 Gbps.

Mach Family

  • MachXO3 Chip Shot


    MachXO3 provides instant-on, non-volatile, small-footprint FPGAs (as small as 2.5 x 2.5mm). The family offers enhanced performance for bridging such as MIPI DSI/CSI-2 interfaces. The family has the highest I/O density in the lowest cost packages.

  • XO2 BGA Chip


    Designed to remove the complexity of choosing between CPLDs and low-capacity FPGAs, the MachXO devices offer glue logic, bus bridging, bus interfacing, power-up control, and control logic.

  • MachXO


    Designed to remove the complexity of choosing between CPLDs and low-capacity FPGAs – with glue logic, bus bridging, bus interfacing, power-up control, and control logic you no longer need to choose.

  • LatticeXP2 FPGA


    LatticeXP2 devices combine up to 40K LUTs with non-volatile Flash cells to enable instant-on performance across a feature-set optimized for high-volume, low cost applications.

  • ispMACH_4000ZE

    ispMACH 4000ZE

    The ispMACH 4000ZE CPLD family is ideal for ultra-low power, high-volume portable applications. The cost-optimized ispMACH 4000ZE family offers standby current as low as 10µA typical and ultra-small space-saving packages.

  • ispMACH 4000 V/B/C/Z Chipshot

    ispMACH 4000V/Z

    The ispMACH 4000V/Z family integrates up to 512 macrocells that support individual clock reset, preset and clock enable controls that operate at SuperFAST™ frequencies of up to 400 MHz.

Power, Thermal and Clock Management

  • Platform Manager II Chip

    Platform Manager 2 & L-ASC10

    Platform Manager 2 simplifies hardware management design, reduce design time, boost reliability and reduce BOM and cost by integrating power, thermal and control plane management into a single design. The entire design is implemented in software.

  • Platform Manager Chip

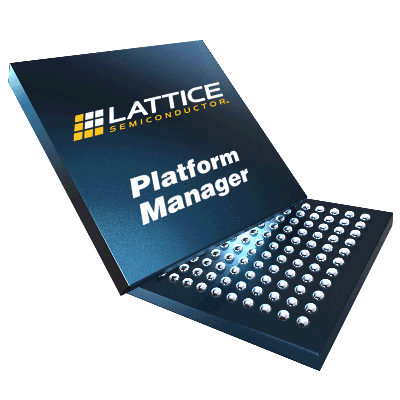

    Platform Manager

    Platform Manager provides power management that is superior in scalability and in-system upgradability, and provides up to 30% board power reduction. With fault logging and dynamic power reduction, it supports all power distribution architectures

  • Power Manager Chip

    Power Manager II

    Power Manager II simplifies power management tasks like sequencing, reset generation, and controlling multiple power supplies. With Power Manager, you can reduce power management costs by up to 50%. Eliminate Flash corruption and cut your design time.

  • ispClock Chip

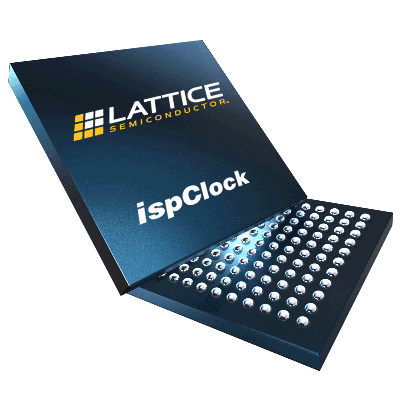

    ispClock can replace zero-delay and fan-out buffers, termination resistors, delay lines, and serpentine clock trace layouts. Program it in-system to generate multiple clock frequencies and drive clock nets with different signaling requirements.

Video Connectivity (HDMI®, superMHL™, MHL® and USB Type-C ASSPs)


Port Processors

  • Port Processors

    TV Port Processors

    Free the TV processor with a TV Port Processor – support up to 8K resolution and superMHL / HDMI 2.0 / HDCP 2.2.

  • Port Processors

    Home Theater Port Processors

    Home theater port processors ensure interoperability and faster switching.

Video Processors

  • Video Processors

    Home Theater Video Processors

    Video processors for Blu-ray players and A/V receivers that enhance picture quality and convert native video resolution to resolutions up to Ultra HD.

HDMI Transmitters

  • HDMI / MHL Transmitters

    Home Theater HDMI / superMHL / MHL Transmitters

    Securely transmit premium 4K at 60fps content over HDMI/MHL and 8K at 60fps content over superMHL with HDCP 2.2 content protection, as well as full backward compatibility support.

  • HDMI Transmitters

    Mobile HDMI® Transmitters

    Lattice’s HDMI transmitter ICs provide high-definition video from source devices like set-top-boxes to TVs and monitors.

  • PC HDMI / DVI Transmitters

    PC HDMI / DVI Transmitters

    Transmit HDMI and DVI signals from PC motherboards, notebook PCs and Graphics Cards with no need for additional microcontrollers.

HDMI Receivers

  • MHL / HDMI Receivers

    TV HDMI / MHL Receivers

    Securely receive premium 4K Ultra HD commercial entertainment content protected using HDCP 2.2 technology with HDMI / MHL receivers.

  • HDMI Receivers

    Home Theater HDMI Receivers

    HDMI signal receivers with multiple inputs and enhanced audio video capabilities compatible with HDMI 1.3.

  • MHL / HDMI Receivers

    Automotive MHL / HDMI Receivers

    Automotive-qualified MHL/HDMI receivers for the ultimate connected car experience.

Port Controllers

  • USB Type-C Controllers

    Mobile USB Type-C Port Controllers

    Our USB Type-C Port Controllers provide faster charging and faster data transfer speeds as well as supporting MHL and DisplayPort standards.

MHL Transmitters

  • Mobile superMHL™/MHL® Transmitters

    Mobile superMHL/MHL Transmitters

    Lattice’s superMHL and MHL transmitters provide Ultra-High-Definition (UHD) video throughput from your mobile device to your TV / monitor.

MHL / HDMI to HDMI Bridges

  • superMHL / MHL - HDMI Bridge

    Mobile superMHL/MHL - HDMI Bridge Chips

    Lattice’s MHL-HDMI and superMHL-HDMI bridge ICs provide ultra high definition (UHD) video from mobile devices to HDMI and other interfaces. Applications include dongles, adapters and docks.

  • MHL / HDMI Bridge

    TV MHL / HDMI Bridges

    Upgrade existing HDMI inputs to MHL-enabled HD audio and video connectivity between mobile devices and HDTVs, PC monitors, projectors and MFMs.

  • MHL / HDMI Bridge

    PC MHL / HDMI Bridges

    Auto-detect and select incoming signals for PC Monitors, Docking Stations and Adaptors with all-in-one MHL / HDMI bridge ICs.

Analog HDMI / MHL Converters

  • HDMI / MHL Connectors

    Home Theater Analog HDMI / MHL Bridges

    Connect legacy analog consumer electronics devices with the latest digital MHL or HDMI 4K UHD TVs and monitors.

iTMDS Transmitters

  • iTMDS Receivers

    TV iTMDS Transmitter

    Add High Bandwidth Content Protection (HDCP) to WUXGA and WQXGA resolution displays with dual-link iTMDS transmitter ICs.

DVI Receivers

  • DVI Receivers

    PC DVI Receiver

    Digital video receiver chips for display devices including PC monitors, TVs and projectors.

Millimeter Wave (60 GHz chipsets and modules built with SiBEAM™ technology)


Gigabit Connector

  • SiBEAM Snap™

    Wireless Connector

    Designed to replace standard physical I/O connectors, SiBEAM Snap™ wireless connector technology delivers up to 12 Gb/s of bi-directional bandwidth for ultra-fast data transfers and Ultra HD video streaming.

Gigabit Indoor

  • WirelessHD Transmitter Module

    WirelessHD® Transmitter/Receiver modules

    Easily integrate WirelessHD capability into sources and displays using WirelessHD transmitter and receiver modules. The modules provide digital audio/video interface compatible with HDMI and support 1080p video.

  • UltraGig™ 6400

    UltraGig™ 6400

    A complete WirelessHD® transmitter solution designed specifically smartphones and tablets.

  • SiBEAM 802.11ad Chipsets

    802.11ad Chipsets

    Lattice 802.11ad compliant chipsets with SiBEAM technology address gigabit network, docking and display applications.

Gigabit Outdoor

  • UltraGig™ Beam-steering Transceivers

    Wireless Fiber - Access and Backhaul chipsets

    High-throughput beam-steering 60 GHz RF transceivers and a complimentary baseband processor address the need for high capacity wireless links in wireless broadband networks, urban LTE small cells and metro Wi-Fi hot spots, and other link applications.

Development Kits & Boards


Development Kits and Boards

  • Dev_Boards

    Development Kits and Boards

    Our FPGA, CPLD, and Mixed Signal based development boards and kits help streamline your design process. With ready-to-use demos and easy-to-use kits, you can go swiftly from prototype to production.

Intellectual Property & Reference Designs


Intellectual Property and Reference Designs

  • Intellectual Property

    Intellectual Property

    Simplify your design efforts by using pre-tested, reusable functions. These proven IP cores are optimized for Lattice device architectures, resulting in fast, small cores that utilize the latest Lattice architectures to their fullest.

Software Tools

  • Lattice Diamond Design Software

    Lattice Diamond Software

    Leading edge design software for Lattice FPGA families. Upgrade your design process with an easy-to-use interface, superior design exploration, optimized design flow, Tcl scripting, and more.

  • iCEcube2

    iCEcube2 Design Software

    Easy to use design tools to help you hit your cost, power, and time-to-market targets. iCEcube2 design software supports the iCE40 family of ultra low-density FPGAs.

  • ispLEVER Classic

    ispLEVER Classic Software

    ispLEVER Classic is the design environment for Lattice CPLDs and mature programmable products. It can be used to take a Lattice device design completely through the design process, from concept to device JEDEC or Bitstream programming file output.

  • Mico System

    LatticeMico System Development Tools

    The LatticeMico System is used to implement the LatticeMico32 and LatticeMico8 soft microcontrollers, and attached peripheral components in a Lattice FPGA. The System is based on Eclipse C/C++ Development Tools (CDT).

  • PAC Designer

    PAC-Designer Design Software

    Fully integrated design and simulation environment for Platform Manager, Power Manager, and ispClock devices.

  • Programmer Tool

    Programmer and Deployment Tool

    For programming all Lattice FPGA, CPLD, Mixed Signal devices (included with Lattice Diamond also)

  • ORCAstra Splash Screen

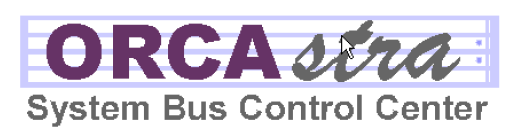

    SERDES debug support for the LatticeECP3 FPGA
